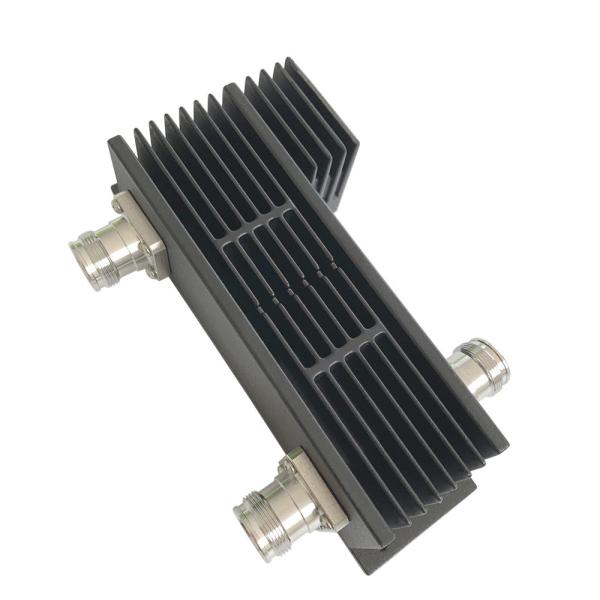

698-2700MHz 4.3-10 Female 3db Hybrid Coupler

Brand Name : Vinncom

Model Number : VN-HC2x1-0738-OP

Certification : ROHS ISO9000

Place of Origin : China

MOQ : 20pcs

Price : Negotiable

Payment Terms : D/A, L/C, D/P, T/T

Supply Ability : 300pcs per day

Frequency : 698-2700MHz 698-3800MHz

Connector : 4.3-10 Mini Din Female

Color : Customized

OEM/ODM : Acceptable

Low PIM : -130dbc as cominer ,-160dbc as 3dB coupler

Application : DAS IBS Public Safety

ROHS : Compliance

Design : Wide Band

Contact Now

698-2700/3800MHz 4.3-10 Mini Din Female Low PIM 3dB Hybrid Coupler Combiner For DAS IBS



The hybrid combiner is used to split and combiner RF signals. It is related to the 3 dB hybrid which is based on PCB transmission lines or dielectric 3db hybrid , and is most commonly used as combiner in distributed antenna system(DAS).

Vinncom has many types of hybrid combiner for different frequency ,from 130MHZ to 6000MHZ ,for example ,2in1out ,3in 3out ,and 4in 4out for different usage and customized products also welcomed .



VN-HC2x1-0738-OP.pdf




Part Number VN-HC2x1-0738-OP
Operating Frequency ( MHz ) 700-3800
Impedance ( Ohm ) 50
VSWR 1.25
Coupling (dB) 3
Insertion Loss (dB) ≤0.8(splitting loss not including)
Isolation (dB) 19
IM3 (dBc @ 2×43dBm) -130
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 200
Peak Power (Watt, max) 1200

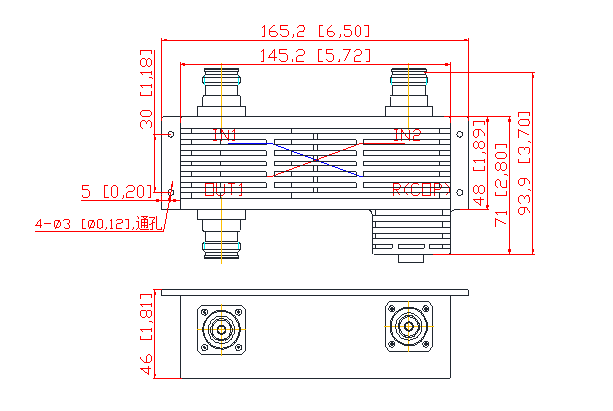

Dimension (mm)(L×W×H, excl connector) 145.2X71X46
Net Weight (g) 825
Packing Dimensions (mm,L×W×H) 175X110X50
Packing Carton Size (mm,L×W×H) 570X360X120
ROHS Compliance Yes
Revision R1
Date 13-November -2020
698-2700MHz 4.3-10 Female 3db Hybrid Coupler
