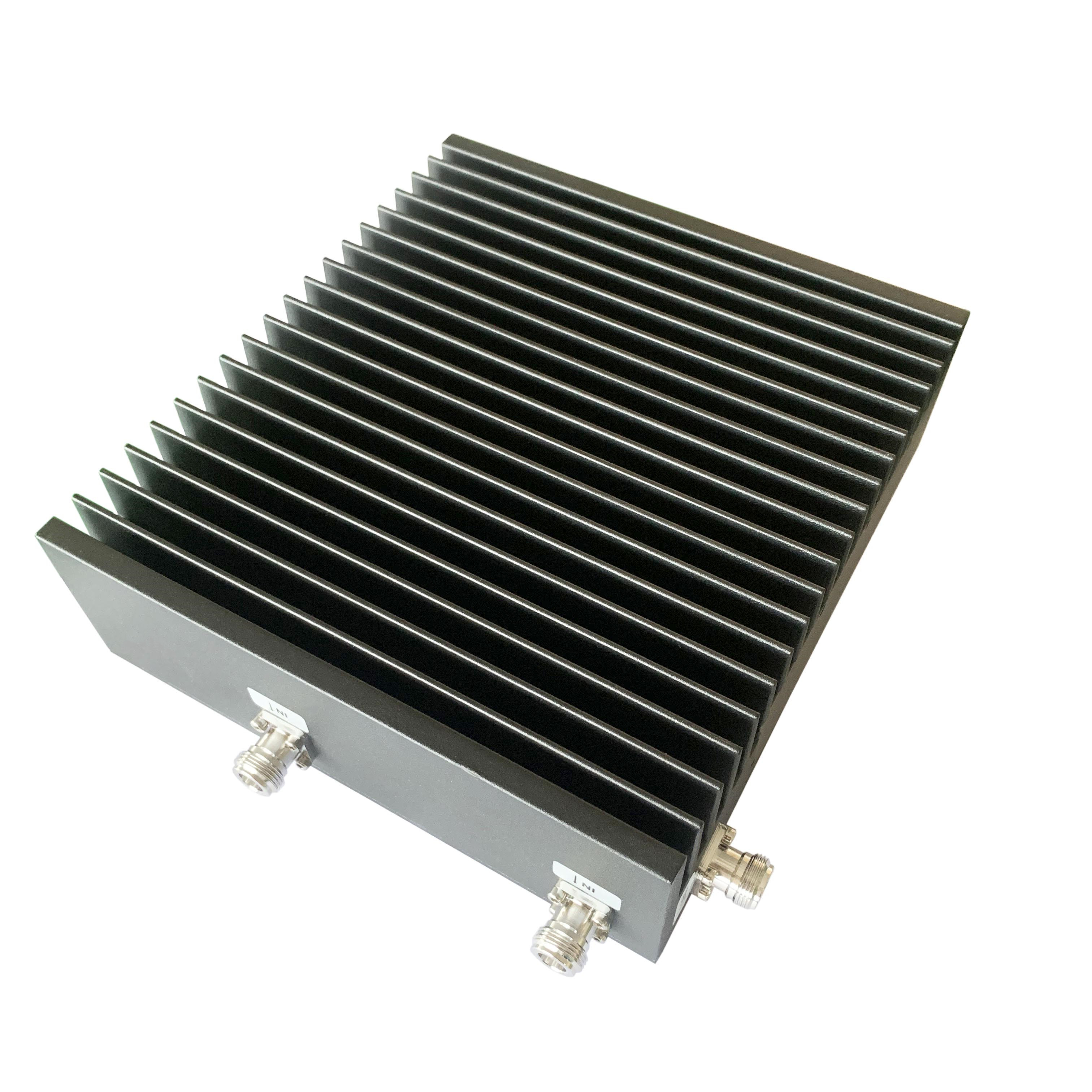

OEM 3800MHz 2 In 1 Out Low PIM RF Hybrid Combiner Coupler Wideband

Product Categories

HeFei Vinncom Science And Technology Co.,LTD

Contact Now

Name: OEM 3800MHz 2 In 1 Out Low PIM RF Hybrid Combiner Coupler Wideband
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-LPHC2x1-0738-ON

Certification : RoHS/ISO9000

Place of Origin : China

MOQ : 2pcs

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 30pcs per day

Delivery Time : 2-4weeks

Packaging Details : foam+box

Operating Frequency ( MHz ) : 690-3800

Impedance ( Ohm ) : 50

VSWR : 1.25

Coupling (dB) : 3

Insertion Loss (dB) : ≤0.8(splitting loss not including)

Isolation (dB) : 23

IM3 (dBc @ 2×43dBm) : -150

Application : Indoor & Outdoor

Contact Now

690-3800MHz 2in 1out Low PIM Hybrid Coupler / 2:1 Combiner N Female Connector

Part Number	VN-LPHC2x1-0738-ON
Operating Frequency ( MHz )	690-3800
Impedance ( Ohm )	50
VSWR	1.25
Coupling (dB)	3
Insertion Loss (dB)	≤0.8(splitting loss not including)
Isolation (dB)	23
IM3 (dBc @ 2×43dBm)	-150
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	100
Peak Power (Watt, max)	1000

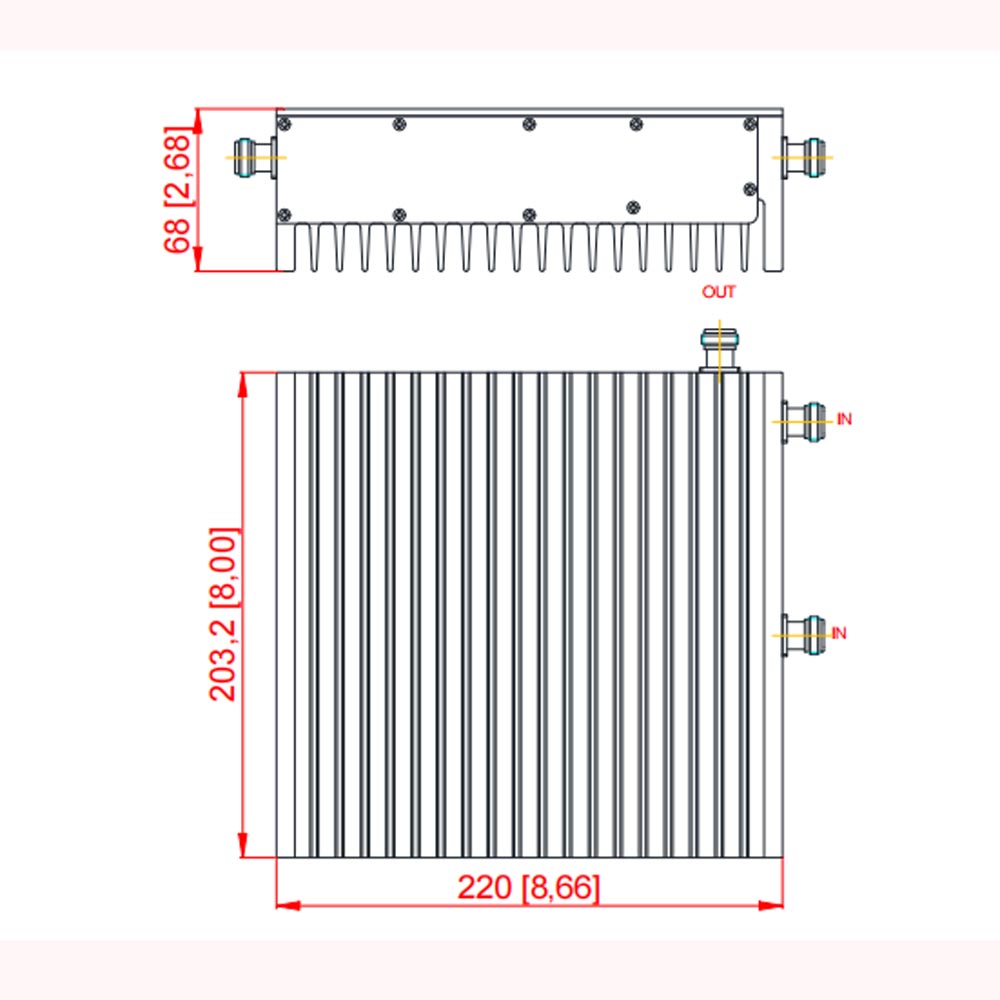

Dimension (mm)(L×W×H, excl connector)	220X203.2X68
ROHS Compliance	Yes

OEM 3800MHz 2 In 1 Out Low PIM RF Hybrid Combiner Coupler Wideband
